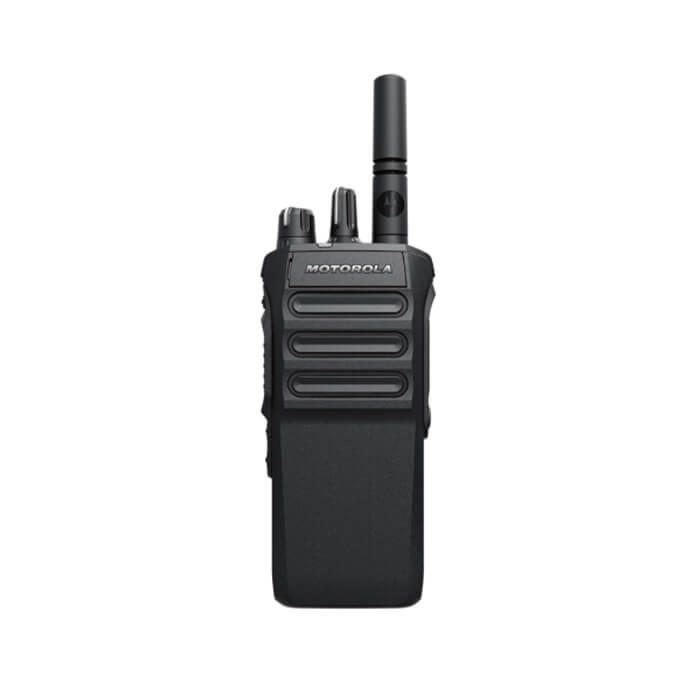

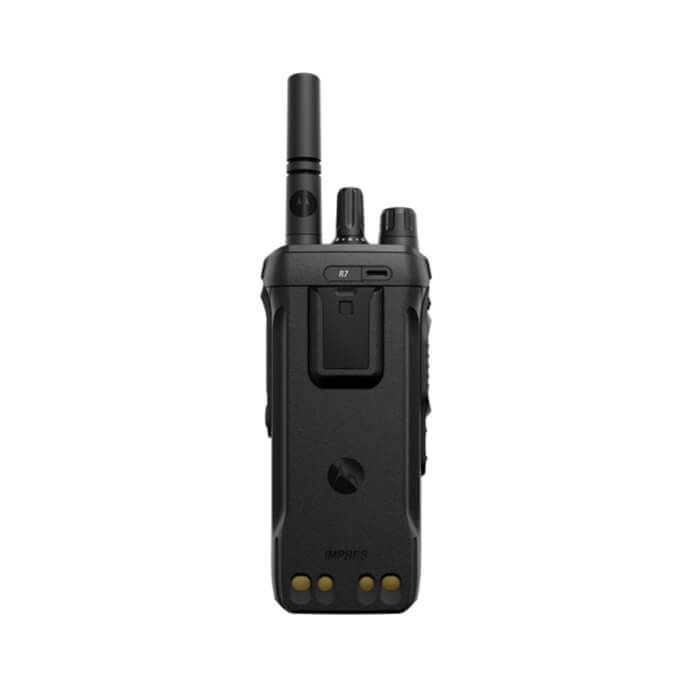

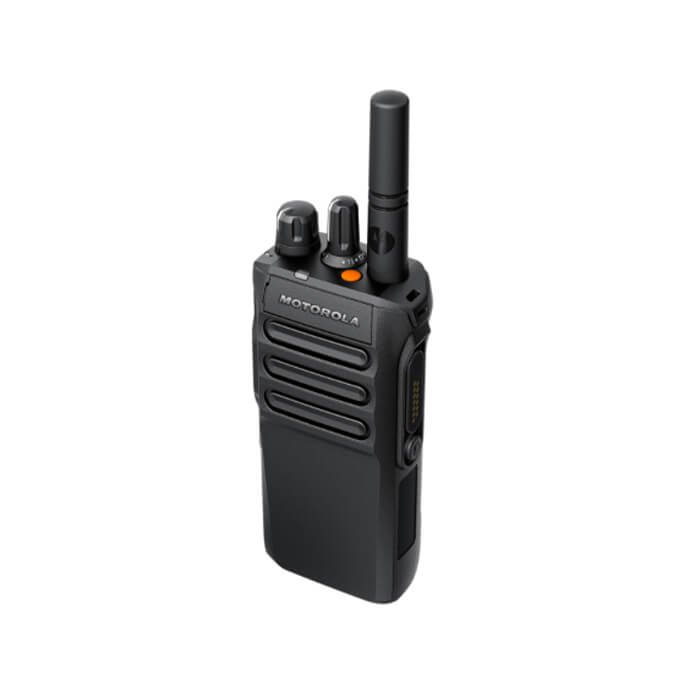

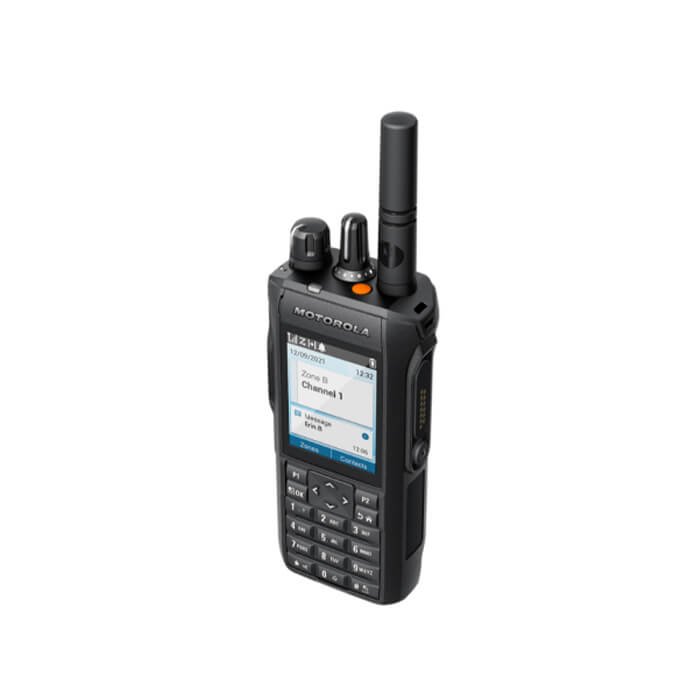

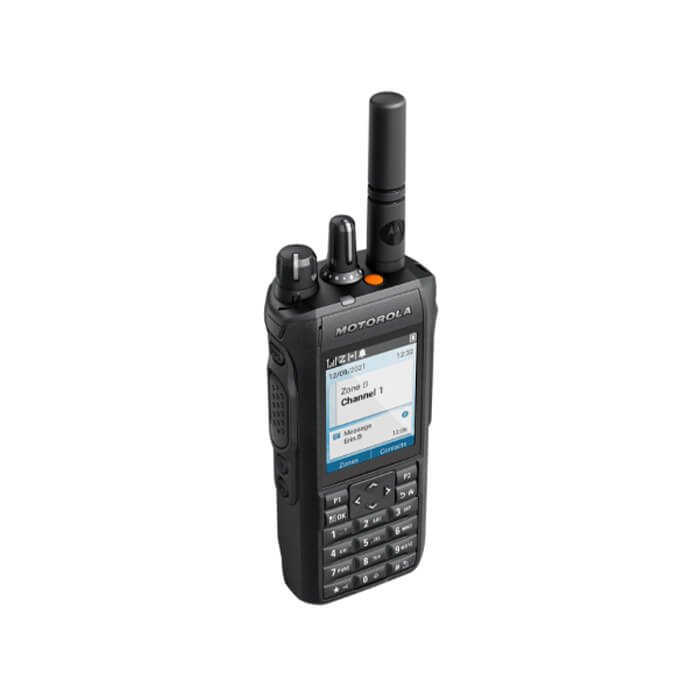

Motorola R7

Suitable for industry

[product_industries]
  • The MOTOTRBO R7 Series is a rugged digital portable radio designed for game-changing audio clarity using adaptive dual-microphone noise suppression. Built to withstand harsh environments, it features an IP68 waterproof rating and meets MIL-STD 810 standards. This future-ready device supports Wi-Fi 5 and Bluetooth 5.2 connectivity , offering up to 28 hours of battery life across both full keypad and non-keypad models.
WHATSAPP TO GET QUOTE
DOWNLOAD BROCHURE

DESCRIPTION

General

  • Frequency Range

    403 - 527 MHz (UHF) ; 136 - 174 MHz (VHF)

  • Channel Capacity

    256

  • Channel Spacing

    12.5 kHz , 25 kHz

  • Operating Voltage

    7.5V DC

  • Dimensions (H-W-D) [with Standard Battery]

    122mm x 56mm x 42mm

  • Weight with Standard Battery

    309g

  • Standard Battery Capacity

    2450mAh

  • Battery Life

    Analog: 21.5 hours ; 22 hours
    Digital: 16.5 hourrs ; 17 hours

RF Specification

  • RF Power Output

    UHF : 1W/4W
    VHF : 1W/5W

  • Sensitivity

    Analog - 0.16 μV
    Digital - 0.14 μV

Environmental

  • Operating Temperature

    -30 °C to +60 °C

  • Storage Temperature

    -40 °C to +85 °C

  • Dust & Water Protection

    IEC 60529 - IP67

  • Electrostatic Discharge

    IEC 61000-4-2 Level 4

  • Packaging Test

    MIL-STD 810 D and E

  • HazLoc Certification

    UL-Approved to TIA-4950 for use in Hazardous Locations, Division 1, Class I, II, III, Groups C,D,E, F, G; Division 2, Class1, Groups A,B,C,D when properly equipped with Motorola UL-Approved battery.
