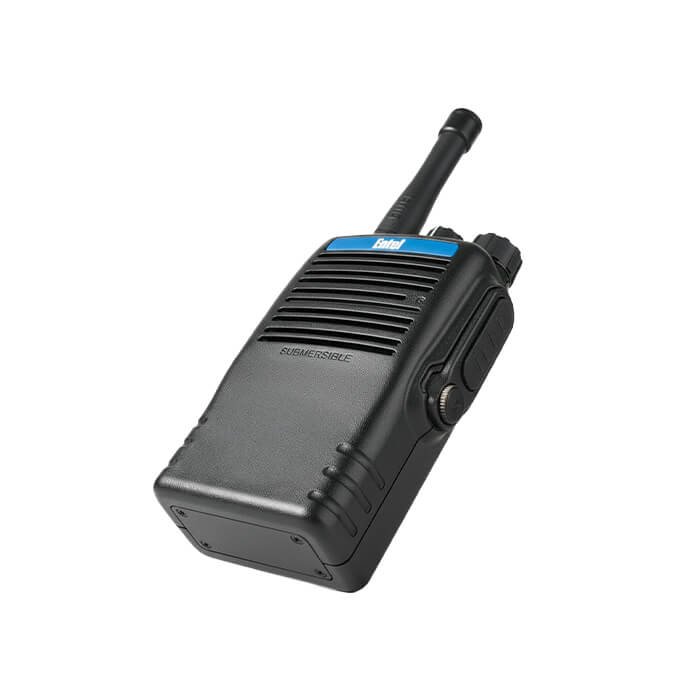

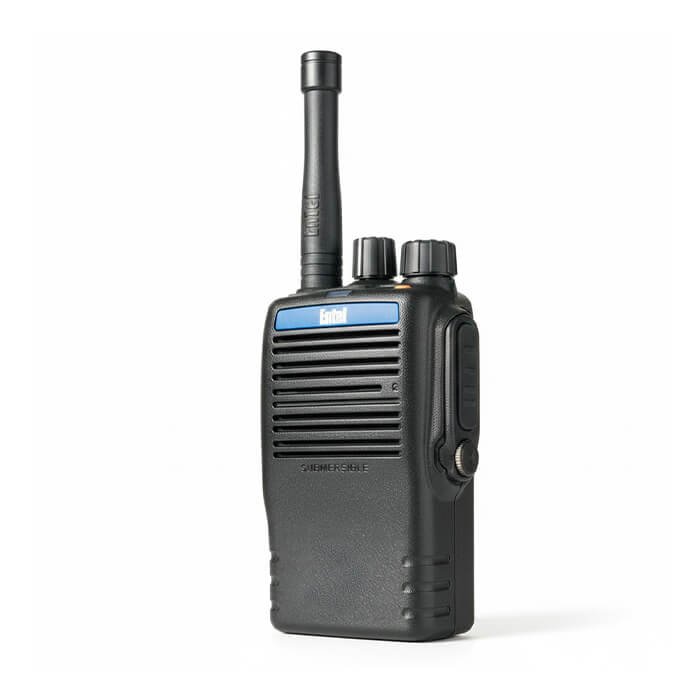

Entel DX-522 -VHF

Suitable for industry

[product_industries]
  • The Entel DX522-IS is a rugged, non-display VHF radio certified to UL913 standards for hazardous environments. Optimized for wide-area outdoor use, it offers a powerful 5-Watt output to maximize range. Built with IP68 submersibility and high-torque controls for gloved hands, this durable device ensures reliable connectivity in extreme conditions.
WHATSAPP TO GET QUOTE
DOWNLOAD BROCHURE

DESCRIPTION

General

  • Frequency Range

    136-174MHz

  • High Power Output

    5W

  • Low Power Output

    1W

  • Channel

    16 (non display version)

  • Zone Capacity

    1

  • Channel Spacing

    12.5kHz/25kHz

  • Operating Voltage

    7.6V

  • Battery Endurance (2200mAh Lithium-ion)

    Analogue : 14 hrs
    Digital: 21 hrs

  • Dimensions(H-W-D)

    97mm X 59.5mm X 37mm

  • Weight

    259g

RF Specification

  • RF Power Output

    5W/1W

  • Sensitivity

    Analog:-121dBm (0.2uV) for 12dB SINAD
    Digital:-121dBm (0.2uV) for 5% BER

Environmental

  • Operating Temperature

    -20 °C to +40 °C

  • Storage Temperature

    -40°C~ +85°C

  • Water Ingress

    IP68 2metres, 4 hours submersible

  • Packing Test

    MIL-STD 810C/D/E/F/G
